Basic Boat Info
Boat Name: K-yachtic
Make: Sea Ray
Model: 580 Sedan Bridge
Year: 2006
Condition: Used
Category: Power
Construction: Fiberglass
Boat Hull ID: SERY1332J506
Has Hull ID: Yes
Range: 499.44 mi
Dimensions
Length: 58 ft
Length Overall: 58'7 ft
Beam: 16 ft
Max Draft: 4'3 ft
Min Draft: 4'3 ft
Displacement: 51,500 lb
Bridge Clearance: 19'9 ft
Dry Weight: 51,500 lb
Deadrise: 17 °
Single Berths: 4
Cabins Count: 3
Engines / Speed
Engines: 2
Engine #1 Specs:
- Make: MAN
- Model: T-MAN CRM V8 900
- Drive Type: Direct
- Fuel: Diesel
- Engine Power: 900hp
- Type: Inboard
- Year: 2006
- Engine Hours: 865
Engine #2 Specs:
- Make: MAN
- Model: T-MAN CRM V8 900
- Fuel: Diesel
- Engine Power: 900hp
- Type: Inboard
- Year: 2006
- Engine Hours: 865
Total Engine Power: 1,800hp
Cruising Speed: 24 kn
Maximum Speed: 30 kn
Tanks
Fuel Tanks: 2
Fuel Tank Capacity: 700 gal
Water Tanks: 1
Water Tank Capacity: 150 gal
Holding Tank Count: 1
Holding Tank Capacity: 68 gal
Other
Heads Count: 2
Drive Type: Direct
Boat Class: Motor Yachts, Flybridge
Contact
Bob Jarrett, CPYB
Essex Boat Works
Office
Essex Boat Works
9 Ferry Street
Essex, Connecticut, US, 06426
Tel:860-460-4985
9 Ferry Street
Essex, Connecticut, US, 06426
Tel:860-460-4985
NOTABLE FEATURES
- MAN 2 Yr. service performed 2019 at 700 hrs.
- Annual maintenance fluids & filters, impellers on MAN's, Trans., Gen 11/2020
- Annual maintenance fluids & filters, impellers on MAN's, Trans., Gen 11/2021
- Flybridge Air Conditioning
- Air Conditioning units replaced 2020 (3)
- Flybridge refrigerator and ice maker
- Hardtop with lighting
- Washer / Dryer
- Sub Zero drawers refrigerators plus freezer w/ ice maker
- Updated audio / video
- Hydraulic Platform/tender lift serviced and updated 2020
- Bow & Stern Thrusters
- Touchscreen electronics
SALON

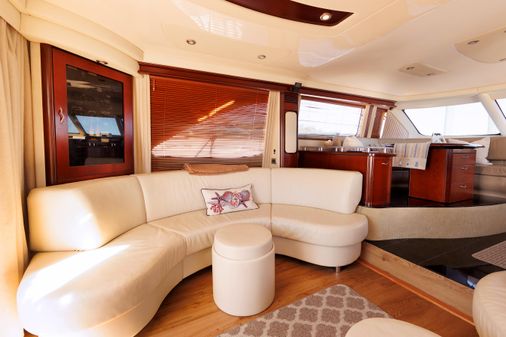

The large salon opens via sliding stainless steel glass door to the cockpit. There is loads of comfortable seating, large windows, delightful lighting and a big TV well positioned for all to see.
The large salon opens via sliding stainless steel glass door to the cockpit. There is loads of comfortable seating, large windows, delightful lighting and a big TV well positioned for all to see.
- L-settee Port and Starboard with Ultraleather upholstery, storage
- L-Dinette upper salon across from galley w/ Ultraleather upholstery, table w/ storage
- 42" Samsung HD Smart TV (2021)
- Bose surround sound system
- Bose DVD/CD player
- DC and AC distribution panel 110 Outlets
- Fireboy carbon monoxide sensor
- (2) SMX climate controllers
- Stainless handles and fixtures
- Custom lighting, programable indirect rope lighting
- Ottomans w/ storage (2)
- Down five steps from the galley

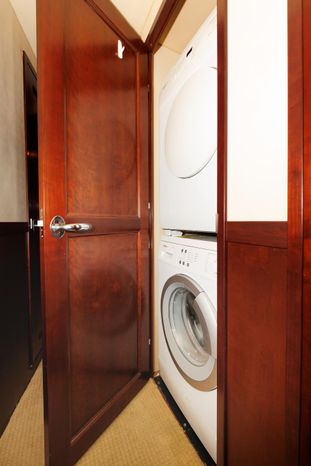

- Stacked washer and dryer (Dryer reported not making heat)
- Central Vac system
GALLEY
The galley is forward one step up from the salon. It spans the starboard side facing large windows with drawer refrigeration and large freezer beneath. Across to port is a large L-shaped dinette convenient meals and social gathering.
The galley is forward one step up from the salon. It spans the starboard side facing large windows with drawer refrigeration and large freezer beneath. Across to port is a large L-shaped dinette convenient meals and social gathering.
- Granite countertops
- Kenyon 2-Burner electric stove top
- Subzero freezer with ice maker
- Subzero refrigerator/freezer drawers (2)
- Cuisonart microwave/convection oven
- Stainless steel sink and faucet
- Stainless handles and fixtures
- 110 Outlets
MASTER STATEROOM
The Master stateroom is around to port and aft of the companionway and offers exceptional privacy. It spans the full beam of the boat with king bunk and lots of storage. The master head with stall shower is en-suite.
The Master stateroom is around to port and aft of the companionway and offers exceptional privacy. It spans the full beam of the boat with king bunk and lots of storage. The master head with stall shower is en-suite.
- 24" onn-Roku HD Smart flat screen television (2021)
- Bose surround system
- SMX climate control
- Fireboy carbon monoxide sensor
- Hanging lockers
- 110 Outlets
- (2) Light fixtures
- Granite countertop
- Mirrored medicine cabinet
- VacuFlush head
- Stainless steel sink and fixtures
- Stainless towel holder
- Grohe faucets
- Custom lighting
- 110 Outlets
VIP GUEST STATEROOM
The VIP stateroom is forward with centerline queen berth. The cabin has an ample amount of storage space, a large hanging locker and an en-suite stall shower with bench seat and teak flooring. Head entry is en-suite, dual entry from the companionway.
Located port side forward, the day head is accented with three mirrored medicine cabinets, a granite countertop, and a stainless sink and fixtures.
The VIP stateroom is forward with centerline queen berth. The cabin has an ample amount of storage space, a large hanging locker and an en-suite stall shower with bench seat and teak flooring. Head entry is en-suite, dual entry from the companionway.
- 12" onn-Roku HD Smart TV (2021)
- 12v DC Lighting
- SMX climate control
- Deck hatch
- 110 Outlets Grohe faucet
Located port side forward, the day head is accented with three mirrored medicine cabinets, a granite countertop, and a stainless sink and fixtures.
- VacuFlush toilet
- 12v DC lighting
- 110 Outlets
- Granite countertop
- Mirrored medicine cabinet
- Stainless steel sink and fixtures
- Stainless towel holder
- Grohe faucets
GUEST STATEROOM STBD
The second guest stateroom is located mid-ship starboard side w/ twin bunk allowing for a washer/dryer cabinet off the companionway.
The second guest stateroom is located mid-ship starboard side w/ twin bunk allowing for a washer/dryer cabinet off the companionway.
- 12" onn-Roku HD Smart TV
- Stainless handles
- Hanging locker
- 110 Outlets
FLYBRIDGE
Up eight steps from the cockpit, the flybridge offers an abundance of guest seating forward and expansive helm station with two pedestal seats.
ELECTRONICS AND NAVIGATION:
Up eight steps from the cockpit, the flybridge offers an abundance of guest seating forward and expansive helm station with two pedestal seats.
- Helm chairs w/ flip bolsters (2)
- Aft removable bench seat with storage
- Forward U-Shaped seating with storage
- Forward storage locker
- Carpeting snap in
- Full canvas curtains (Stratoglass)
- FB Air Conditioning
- Overhead and indirect lighting
- Norcold refrigerator
- Isotherm ice maker
- Clarion surround sound system
- 110 Outlets
- Stainless steel sink
- Chart drawer
- Fire extinguisher
- Fiberglass hard top with lighting & hatch
ELECTRONICS AND NAVIGATION:
- Raymarine Hybrid Touch 16" color display (2)
- Raymarine Radar
- Ritchie compass
- VHF radio Ray 240
- RayMarine autopilot ST8001
- Bow thruster joy stick control - Vetus
- Stern Thruster joy stick control - Vetus
- Bennett trim tabs
- ACR point pad for spotlight
- Seastar tilt wheel
- ZF controls
- Engine synchronizer
- Clarion 6-Disc CD changer (inoperable)
- Fusion MS-4D850 satellite ready radio (2021)
- Sea Ray systems monitor
- MAN Marine diesel monitors
- Volt, fuel, water, oil, and rpm gauges
- Rudder indicator
- Tracvision 4 Satellite TV Dome (inoperative and no longer supported)
COCKPIT
The cockpit is spacious with transom bench seating, large table, steps to side decks, storage lockers and transom door. There is a trunk type storage compartment accessible from the top and the transom to store hoses, buckets, brush handles, fenders, lines etc. This is very convenient for keeping things ship shape!
The cockpit is spacious with transom bench seating, large table, steps to side decks, storage lockers and transom door. There is a trunk type storage compartment accessible from the top and the transom to store hoses, buckets, brush handles, fenders, lines etc. This is very convenient for keeping things ship shape!
- Port and starboard storage lockers
- Top load storage lockers
- Draining and insulated top load chest
- 110 Outlets
- Overhead and indirect lighting
- Hot/cold transom shower
- Two rod holders
- Transom door
- JL Audio marine speakers cockpit and flybridge (new 2022)
- Fresh water wash down
- Full canvas cover
- Grab rails
- Engine room access hatch
- Glendenning Cablemaster w/ remote
- 110 Outlets
- Swim Platform
- Hydraulic lift w/ remote
- Fresh water hookup
- Two cleats
- Swim ladder
DECK
- Handrails
- (8) Cleats
- Windshield screen cover
- LoFrans anchor windlass with cover
- Aanchor lockers (2)
- Plow anchor with chain
- Frwd cabin top sunpad
- ACR Remote spotlight
- Molded non-skid
- Lighting

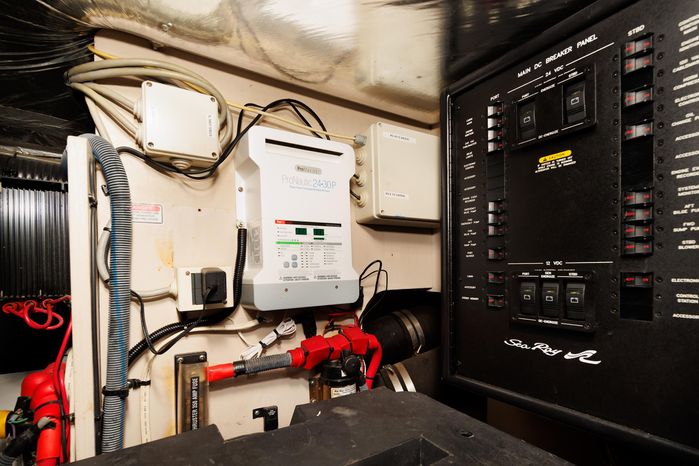

ELECTRICAL & SYSTEMS
- 17KW Onan Generator with 2175 Hours
- 240v 50amp shore cord service on cable master
- AC 220/110v electrical system
- DC 24/12v electrical system
- Battery Charger Pro Mariner Flyback 10-3
- Electrical bonding system
- Batteries 8D (6)
- Wiring color coded and labeled
- Electrical bonding system
- Horn
- Wiring color coded and labeled
- Bilge Pumps 24v DC Rule 2000 (4)
- High water alarm bilge
- Glendenning Cablemaster shore cord reel
- 24v - 12v Converter
- ISO Transformer
- Bow Thruster Vetus 24v DC 160KGF
- Stern Thruster Vetus 24v DC 160KGF
- Bosch Axxis Washwer/Dryer (Dryer reported not making heat)

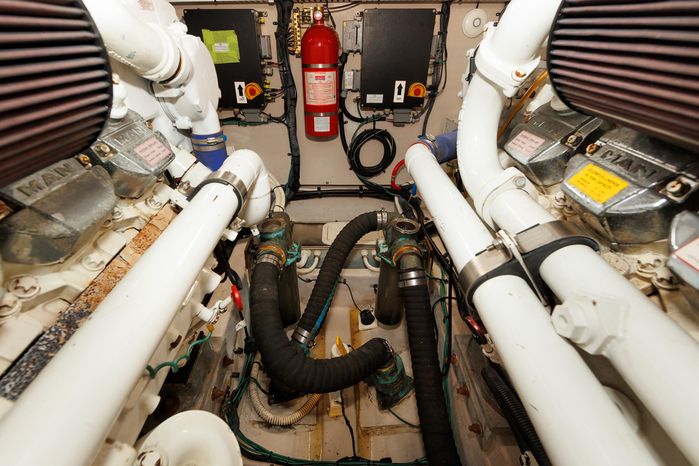

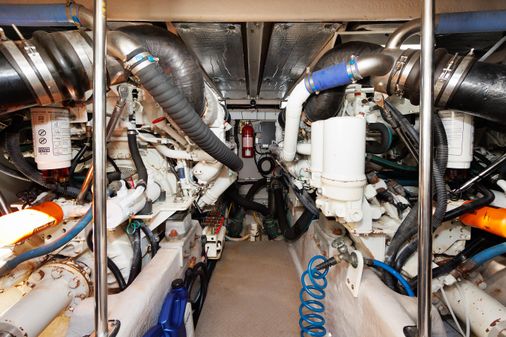

MECHANICAL
- Twin MAN D2848 LE 423 900hp Common Rail Engines
- Twin Disc MG 5114A Marine Gear
- Propellers Nibral 4 blade (2)
- Prop shafts SS 2 1/2" (2)
- Onan 21.5 KW Generator
- Power steering oil reservoir
- Engine room ladder
- Dual Racor fuel filters w/ vacuum gauges (2)
- Groco sea strainers
- Reverso oil change system
- Overhead lighting
- Fireboy engine room fire suppression system
- Trim Tabs Bennett
EXCLUSIONS
The following items are excluded from the offering; Master cabin bedding, All loose galley items on counter and in drawers & lockers, owners personal belongings, tools, decor items, throw pillows, area rugs. Any loose items seen aboard or in photos not specifically stated on the listing inventory should be considered excluded.
The following items are excluded from the offering; Master cabin bedding, All loose galley items on counter and in drawers & lockers, owners personal belongings, tools, decor items, throw pillows, area rugs. Any loose items seen aboard or in photos not specifically stated on the listing inventory should be considered excluded.
